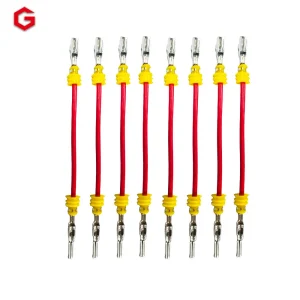

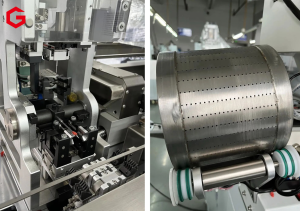

The Fully Automatic Double-Crimping & Double-Grommet-Insertion Waterproof Terminal Machine is a highly automated wire harness processing equipment. It integrates automatic waterproof grommet insertion, automatic wire cutting, stripping & twisting, and automatic crimping in one unit, feeding waterproof grommets onto wire ends. It can complete terminal crimping and waterproof grommet insertion in a single operation. Here, “double-crimping” means it can crimp terminals for two wires simultaneously, while “double-grommet-insertion” refers to inserting waterproof grommets onto these two wires at the same time as crimping—enabling efficient and precise wire processing.
Core Components & Functions
- Wire Feeding System
Controlled precisely by servo motors or stepper motors, it feeds the wires to be processed to the working position according to the set length and speed, ensuring stable and accurate wire feeding.
- Terminal Crimping
It crimps specified terminals onto wire ends using stamping. Stamping dies are designed and replaced based on different terminal types, and strong pressure is applied to achieve a tight connection between terminals and wires.
- Waterproof Grommet Insertion
While crimping terminals, the equipment accurately inserts waterproof grommets into the connection area between wires and terminals. This process is usually completed by a dedicated grommet insertion device, which precisely controls the position and insertion depth of the waterproof grommets.
- Control System
With a Programmable Logic Controller (PLC) as the core and a Human-Machine Interface (HMI), operators can set processing parameters via the touchscreen—such as terminal crimping pressure, waterproof grommet insertion depth, and wire feeding length. The control system coordinates the actions of all components to ensure the automation and precision of the entire processing process.
Product Advantages
- High Production Efficiency
The double-crimping and double-grommet-insertion functions significantly improve production efficiency. Compared with traditional single-crimping & single-grommet-insertion terminal machines, it can complete more processing tasks in the same time, with an output of approximately 1,200 wires per hour—suitable for large-scale wire processing.
- High Precision
Adopting advanced precision dies and control systems, it ensures the accuracy of terminal crimping and waterproof grommet insertion, guarantees consistent quality of each wire connection, and improves the overall product quality.
- Labor Savings
With high automation, it reduces manual operation steps and labor intensity. Only a small number of operators are needed to monitor the equipment and set parameters.
- Good Stability
The equipment’s mechanical structure and electrical system are optimized for stable and reliable operation, reducing the probability of failures and ensuring continuous production.
