Terminal crimping machines are automated devices used in wire processing for crimping terminals. To meet diverse processing needs, they are often equipped with various optional accessories. These accessories can expand the machine’s functionality, enhance processing precision, and improve efficiency. Here are the common optional devices:
1. Feeding-related Devices

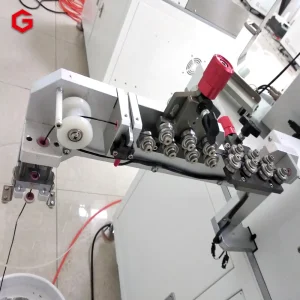

- Automatic wire feeding device: Enables automatic wire conveying without manual feeding. It can accurately feed wires according to the set wire length, reducing manual operation errors and is suitable for mass production.
- Automatic terminal feeder: Arranges terminals neatly and automatically conveys them to the crimping position, eliminating the hassle of manual terminal placement, ensuring precise terminal positioning, and improving crimping consistency.
- Integrated wire cutting and stripping device: Performs wire cutting and stripping before terminal crimping, eliminating separate cutting and stripping processes. It realizes an integrated workflow from wire processing to terminal crimping, boosting production efficiency.
2. Detection and Monitoring Devices
- Terminal crimp pull force testing device: After crimping, it automatically conducts pull force tests on terminals to check if the crimping strength meets standards. If unqualified, it triggers an alarm and stops the machine to prevent defective products from flowing out.
- Visual inspection system: Uses high-definition cameras and image processing technology to conduct real-time inspections on terminal appearances (such as deformation, missing materials, crimping position deviation, etc.) to ensure terminal quality.

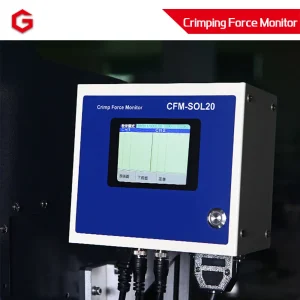

- Pressure monitoring device: Monitors pressure changes during the crimping process in real time. If the pressure exceeds the set range (too high or too low), it immediately stops the machine and alarms to avoid crimping defects caused by abnormal pressure.
3. Auxiliary Processing Devices
- Wire twisting device: For multi-strand wires, it twists the strands before terminal crimping to make them tightly bonded, preventing wire loosening and ensuring crimping effect and conductivity.
- Heat shrink tube processing device: If heat shrink tubes need to be applied at terminals, this device can realize automatic feeding, positioning, and heating shrinkage of heat shrink tubes. It cooperates with the terminal crimping process to complete the full processing of wire ends.
- Multi-station conversion device: Suitable for scenarios requiring processing of multiple different terminals or multiple processes. By switching between different stations, one machine can complete various processing tasks, saving equipment investment and space.
4. Safety and Convenience Devices
- Safety protection devices: Such as protective covers and infrared sensors. When an operator’s hand or body part enters the dangerous area, the equipment stops immediately to ensure operator safety.
- Automatic material collection device: Automatically collects and sorts the crimped wire terminals, avoiding the mess of manual collection and facilitating subsequent packaging and use.
- Touch screen control system: Parameters (such as wire length, crimping pressure, feeding speed, etc.) can be set intuitively through the touch screen, and multiple processing schemes can be stored, facilitating quick switching between different products and making operation more convenient.
These optional devices can be combined according to specific production needs, helping enterprises realize automation and intelligence in wire terminal processing, and improving production efficiency and product quality.
